FEELWORLD F5 Pro V4 6 inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output Tilt Arm, F5 Pro V4

Features

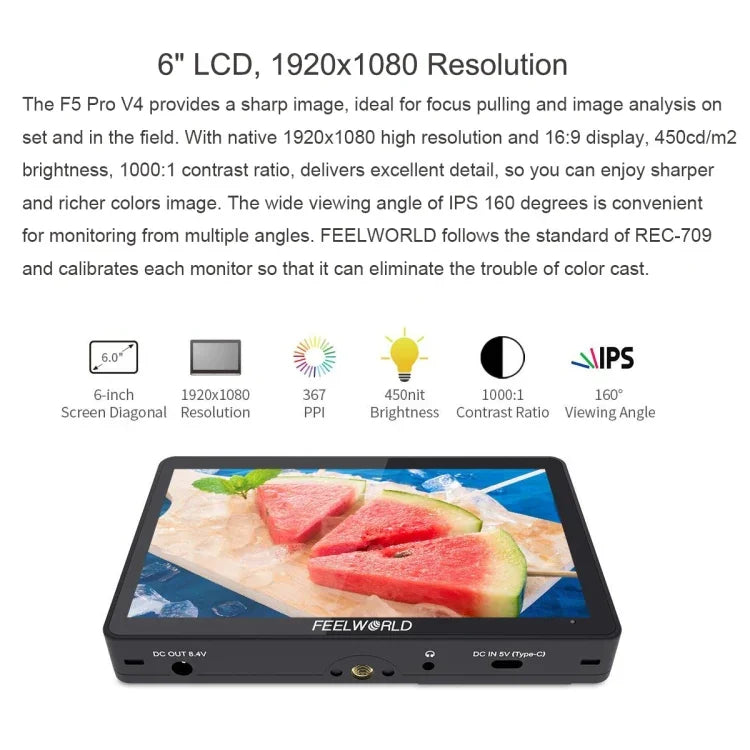

1. High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 450cd/m, 160 degree wide viewing angles IPS Panel
2. This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment
3. Support 3D LUT Log to Rec.709, user 3D LUT Upload

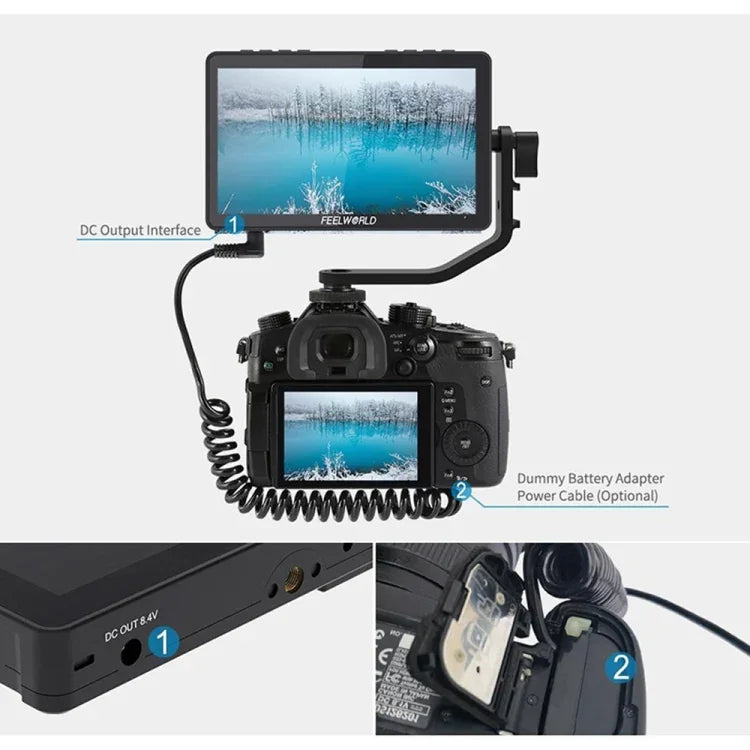

4. Provide auxiliary power out; allowing shooters to power their cameras
5. All waves
6. Waveform (RGB, Y, YUV)
7. Histogram(RGB1, Y, RGB2)
8. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
9. False Colors
10. Zebra Exposure
11. Nine Grid
12. Scan Mode (Under Scan, Over Scan)
13. Zoom (4x,9x,16x)
14. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black???
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All (0~500 adjustable)
24. U/D & L/R Zoom (0~500 adjustable)
25. Color Temperature Adjustment

Specifications
Display screen
1. Model: F5 Pro V4

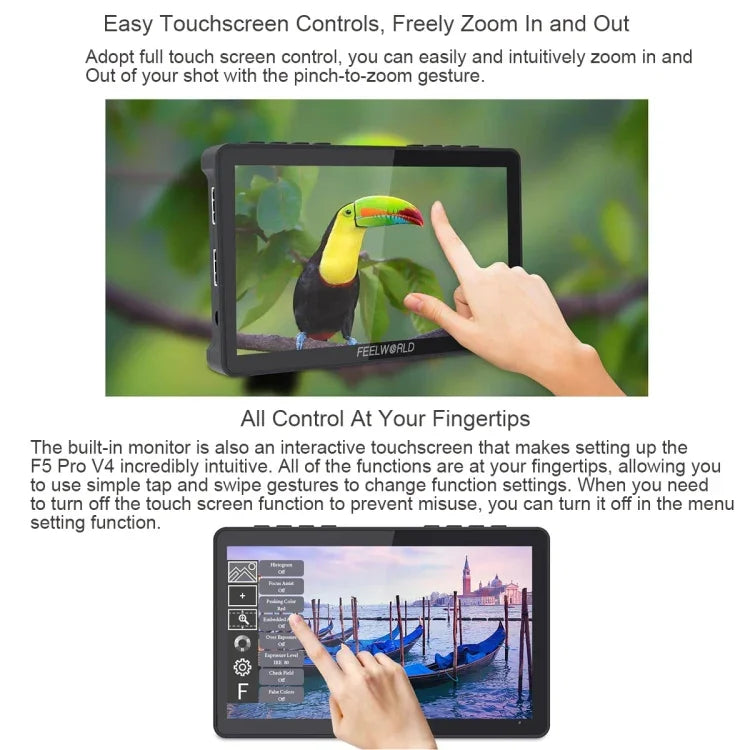

2. Screen Size: 6.0 inch IPS Touch Screen
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (W) mm
5. Aspect Ratio: 16:9
6. Brightness: 450cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degrees /80 degrees (L/R) 80 degrees /80 degrees(U/D)

Input
1. 1 x HDMI: HDMI
2. 1 x Type-C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)

Output
1. 1 X HDMI: HDMI
2. 1 X DC Output: DC Output

Audio
- Audio: Stereo Headphone

HDMI Input/ Output Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)

General
1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 8W
3. Power Connector: DC
4. Working Temperature: -20 degree C~50 degree C
5. Storage Temperature: -30 degree C~60 degree C
6. Install Way: 1/4-20 thread points

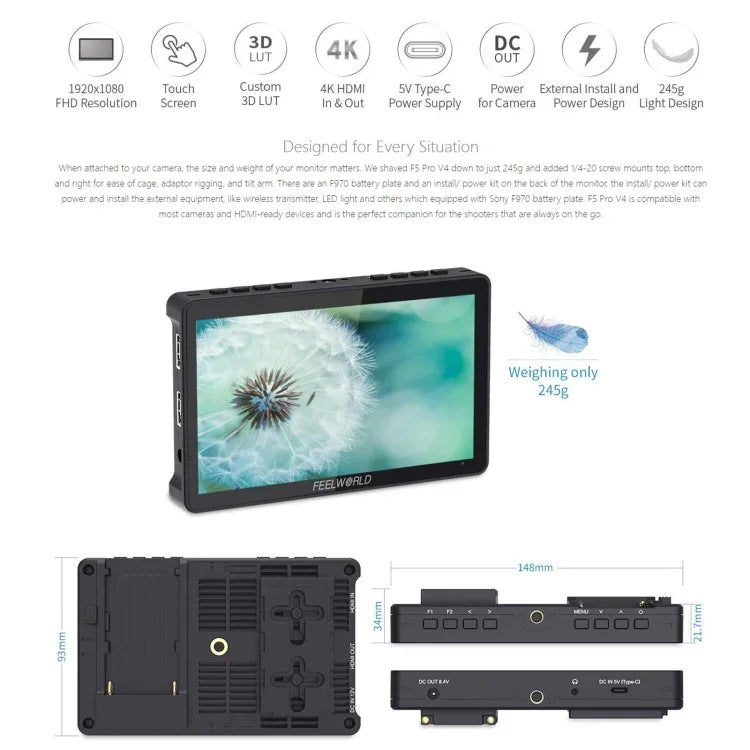

7. Unit Size: 148Lx93Hx20D (mm)
8. Unit Weight: 245g

Package List
1. Monitor x 1
2. Micro HDMI Cable x 1

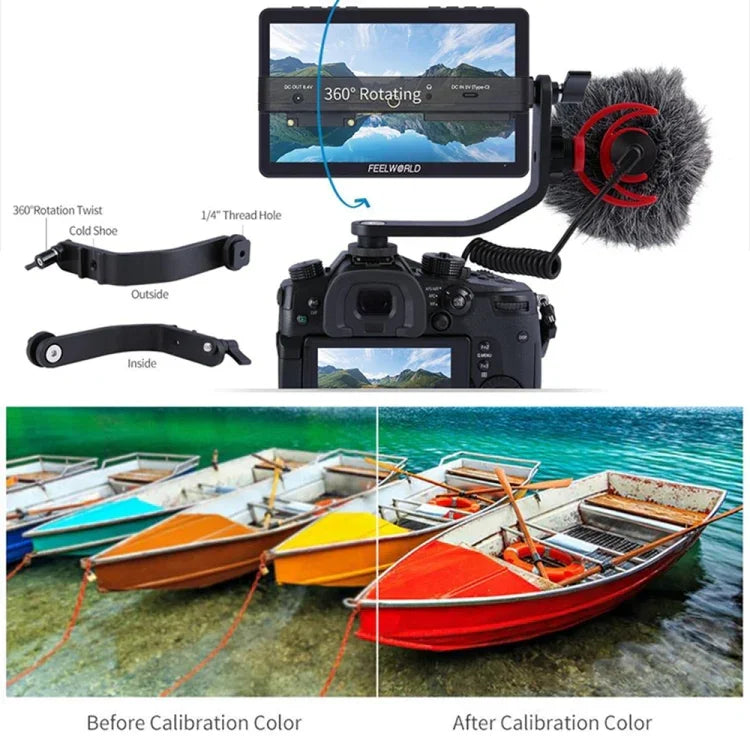

3. Tilt Arm x 1

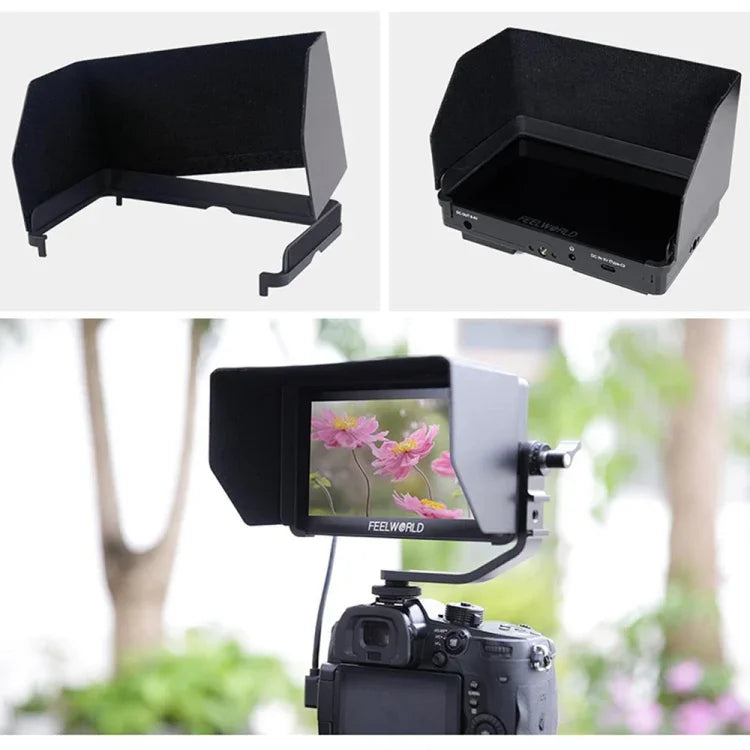

4. Sunshade x 1
5. TYPE-C to USB x 1
6. Disassembly Wrench x 1
7. Manual x 1
