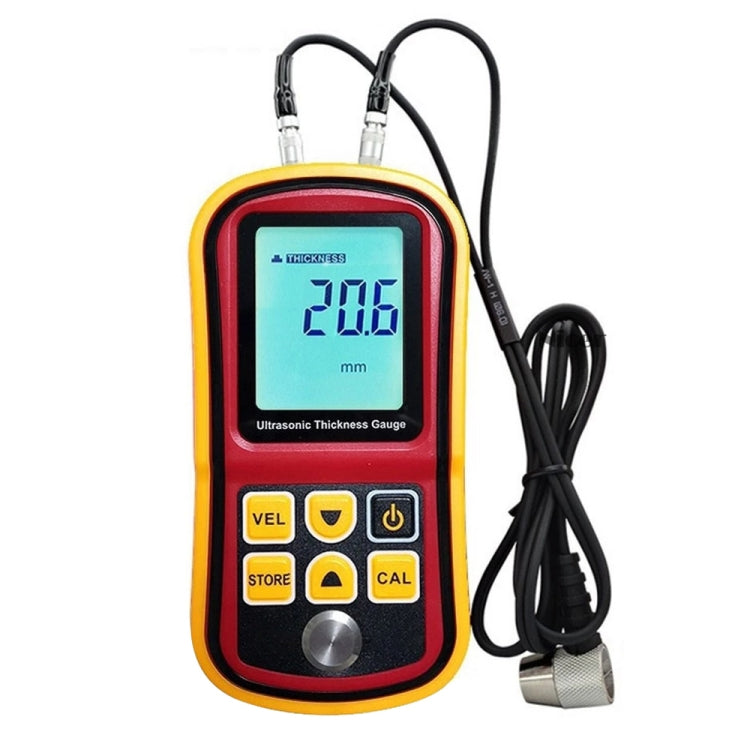

เครื่องวัดความหนาอัลตราโซนิก GM-100 วัดความเร็ว 1.2~225 มม., GM-100

1. The tool has wide measurement range from 1.20 ~ 225.00 mm (0.047 ~ 8.86 inch) with accurate measurements. Moreover, the meter has ultrasonic wave velocity measurement function from 1000 m/s to 9999 m/s.
2. This unit is widely used in various precise measurements for different hardware / parts in industrial realm. One of its important applications is to monitor the level of thickness decreasing during operation of various and pressure container.
3. It is diffusely applied in manufacture fields, metal processing and commercial inspection. This product can be applied for the material that conduct and reflect constant sonic velocity

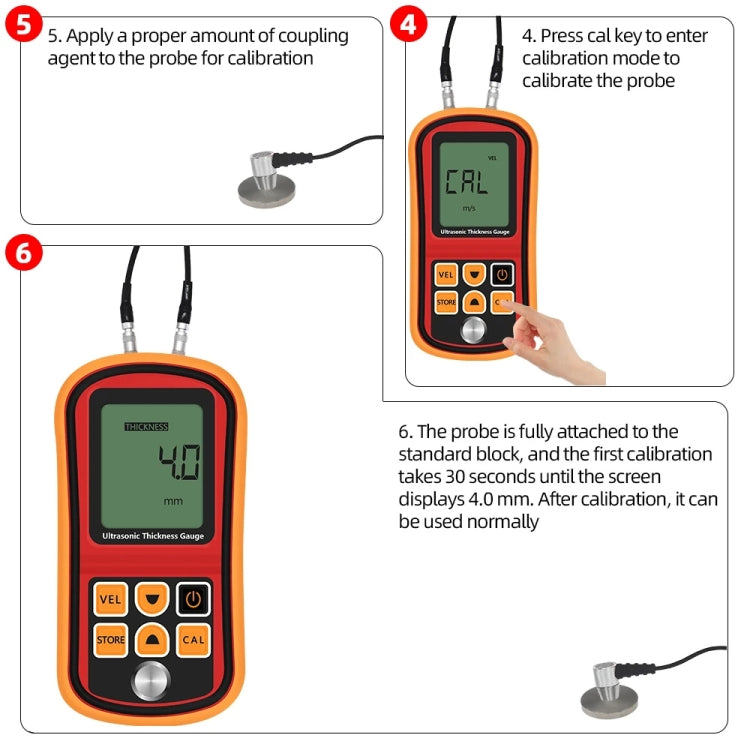

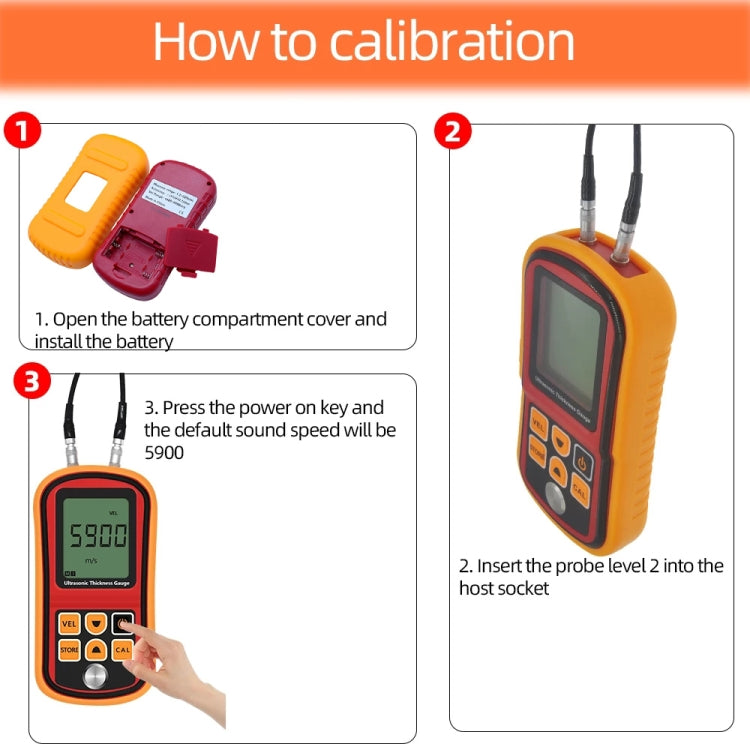

4. Auto Calibration to assure the accuracy
5. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer

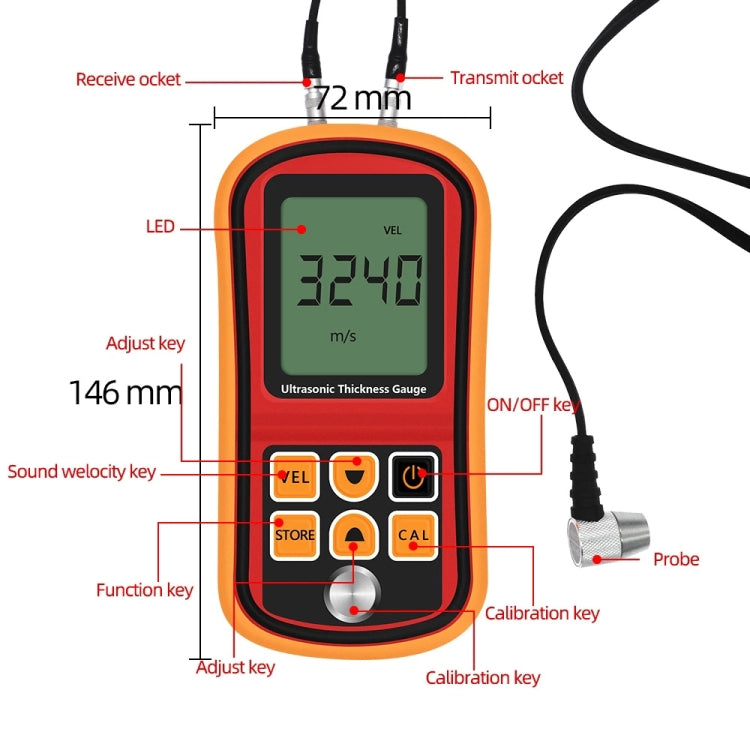

6. Use "up" and "down" keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
7. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
8. 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
9. Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
10. 12 sound velocity for different material which also adjustable
11. Low battery indication
12. Auto power off mode designed to conserve battery life
13. More than 10000 times long life keys
14. The unit has a special memory that retains all of its setting even when the power is off
15. LCD Digital display: 4 digits
16. Minimum display unit: 0.1 mm
17. Working frequency: 5 MHz
18. Measurement Range: 1.2 ~ 225.0 mm (Steel)
19. Minimum limit for Tubes measurement: 20mm x 3mm (Steel)
20. Note: couplant (Not included)
21. Sound Velocity Range: 1000 ~ 9999 m/s
22. Measuring Sound Velocity with a given thickness
- Measuring Range: 1000 ~ 9999 m/s
23. Operating Temperature: 0 ~ 40 degree centigrade
24. Power supply: 3 x 1.5 AAA Alkaline Batteries (Not included)
25. Size: 150x76x30mm
